The first in a new series by David Freeman
FEATURING: New Soundwedge with rolled top armrest, offcet soundhole, 24 frets ,deep cutaway access Sliding door sideport!  These need to be played to appreciate ~

Balanced response bass to mids to trebles. 5 Octaves !

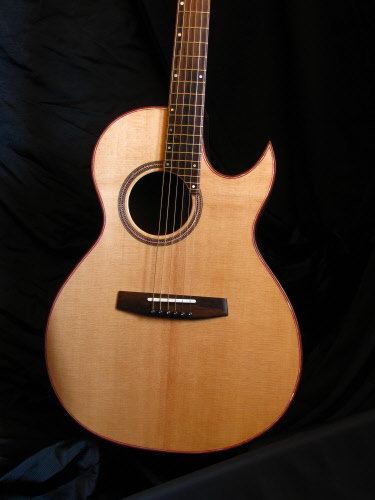

Top;Master sitka spruce, rolled armrest for comfort playing under the strumming arm. Offcet sound hole add to the monitor for the player as well as allowing deep cutaway access keeping a balanced look.

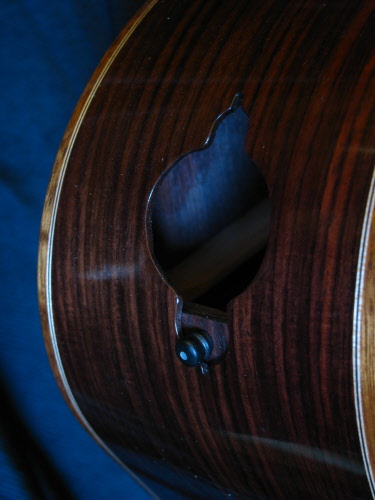

B&S; E.I. Rosewood , side port w/ sliding door for monitoring, tone adjustment, & directional projection
Neck;AM.Bl.Walnut curled figure
Fingerbd & Bridge; Zircote. Bound in KOA  24 frets 25"scale Deep cutaway
bone Nut & Saddle; BuzzFeiten intonated.
Head. Slotted Zircote veneers front & back, Gotoh tuners Inlay MOP T


  • Master Sitka Spruce Top with Offcet soundhole and Bentwood Top

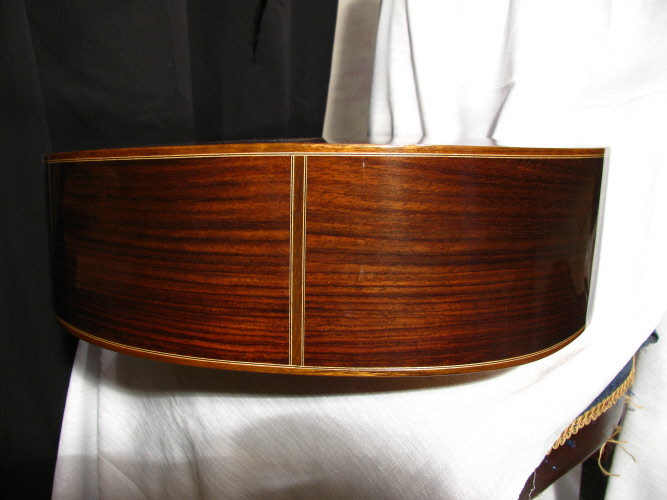

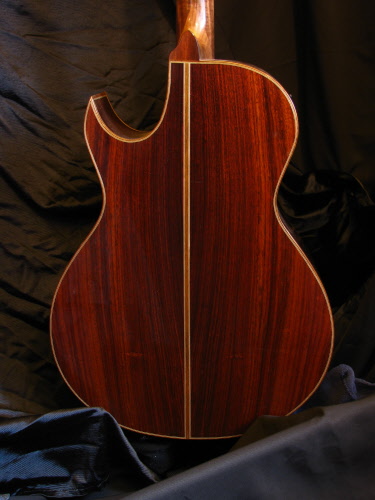

  • East Indian Rosewood Back and Sides
  • American Black Walnut Neck
  • Zircote Fingerboard and Bridge
  • Mother of Pearl with Red Purflings
  • Soundport with sliding door
  • Shedua Binding on body and fingerboard.
  • TI inlay with Mother of Pearl and orange osage
  • Slotted headstock with zircote veneer and a maple underlay

The Soundwedge is a new design aspect that David is exploring, where the depth of the body is larger on the bass side and narrower on the treble side to allow bigger space for bass sound and tighter space for treble sound waves.  The bentwood top is added to the wedge to allow the player's arm to rest comfortably on the guitar without the wedge negatively affecting the playability of the guitar.
